WisLink Cellular mPCIe Quectel BG96
RAK8213
Prefer another courier for your delivery? Contact us for special shipping arrangements.
Product Description

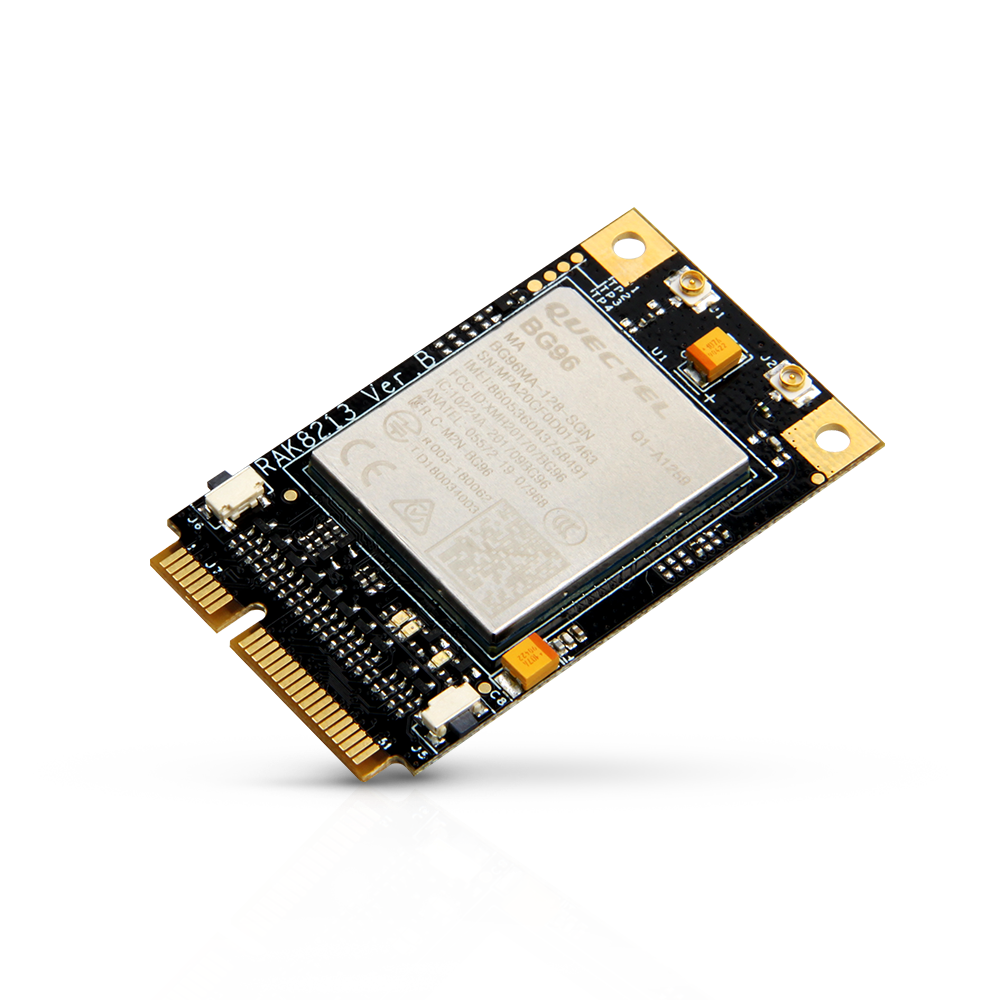

WisLink Cellular mPCIe (RAK8213) is a multi-band LTE Cat M1/Cat NB1/EGPRS module based on the Quectel BG96 with a standard PCI Express® form factor (Mini PCIe). It offers a maximum data rate of 375Kbps downlink and 375Kbps uplink.
RAK8213's built-in GNSS module can support GPS, GLONASS, BeiDou/Compass, Galileo, QZSS, integrated GNSS greatly simplifies product design and provides faster, more accurate, and more reliable positioning.
Rich Internet protocol, industry-standard interfaces (USB/UART/I2C/Status indicators) and rich features (applicable to Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux drivers for Linux and Android) Modules that extend applicability are suitable for a wide range of M2M applications such as wireless POS, smart metering, and tracking.
Product Applications
- M2M and IoT applications
- Tracker application
Key Features
- LTE Cat. M1/Cat.NB1/EGPRS module with Mini PCIe form factor, optimized for M2M and IoT applications.
- Ultra-low power consumption.
- USB Drivers and support 2.0 high-speed interface.
- Quectel Enhanced AT commands.
- Feature refinements: supports DFOTA, VoLTE.
- Easy migration from Quectel GSM/GPRS, UMTS/HSPA, and LTE modules.
- Robust mounting and interfaces
- PCM interface available for VOLTE
Product Details
- Product Dimensions: 51mm x 30mm x 4.9mm (± 0.2mm)
- Product Weight: 8.9g
Package Inclusions
- 1x WisLink Cellular mPCIe (RAK8213) module
- 1x iPEX LTE Antenna
- 1x iPEX GPS Antenna
Documentation
Questions and Answers
-
Could you tell me when this product (RAK8213 NB-IoT BG96) will be available again for sale? Thanks.
This has since been replaced by the RAK5010, our new Nb-IoT solution:https://store.rakwireless.com/products/rak5010-nb-iot-tracker
Availability of the RAK8213 can not be guaranteed if any at all. -
How can I switch guard band mode to the in-band mode? Is anything AT commands there to do that?
This is something that depends on whether your cellular provider has support for Nb-IoT. This is not a functionality that can be regulated by the module itself.
-
Hi! I need driver for rak 8213 "https://downloads.rakwireless.com/en/WisLTE/Tools/Quectel_BG96_Windows_USB_Driver_V1.0.zip " NOT WORKING
This is where the driver is. Think you already got it resolved via Facebook, but just in case:)
https://downloads.rakwireless.com/en/Cellular/WisLink-Cellular-RAK2011/Tools/ -
If I order 10,000 units can I order them with the SIM socket?
RAK8213 already has a SIM holder on the back already of the type, you can see it on page 6 of the following document:
https://downloads.rakwireless.com/en/Cellular/RAK8213/Hardware%20Specification/RAK8213%20Data%20Sheet.pdf
Please send your specific requirements to our email so we can customize your bulk order. -
Dear Team Checking for Cat-M1 solution I found the RAK8213. Can you provide a Datasheet? Is this module certified for Europo according RED directives. If yes may you also send the Certification approval. Thank you in advance and best regards Louis
The requested document below: https://downloads.rakwireless.com/en/Cellular/RAK8213/Hardware%20Specification/RAK8213%20Data%20Sheet.pdf There is of this moment no Certification for RED.
