ESP32-S3 + SX1262 Module for LoRa®

What Is RAK3112 LoRa Module?

RAK3112 is a high-performance LoRa module that combines the ESP32-S3’s AI-capable dual-core processor with the long-range SX1262 LoRa transceiver. Designed for next-generation IoT devices, this module empowers developers to build smarter, faster, and more connected edge systems. It’s applicable for real-time data processing, graphical interfaces, or long-distance mesh communication.

With integrated WiFi, BLE, and LoRa in one compact Meshtastic module, RAK3112 eliminates the need for multiple components, reducing hardware complexity while maximizing flexibility.

Why You Need RAK3112 LoRa Module

Build smarter IoT devices with one powerful module. Whether you're creating a Meshtastic-connected handheld terminal, an edge AI sensor, or a graphical control panel for remote systems, the RAK3112 LoRa wireless module gives you the performance and flexibility to do it all.

Why it's useful:

• All-in-one wireless – Combines LoRa, WiFi, and BLE in one compact module
• Ready for edge AI – Run lightweight neural networks directly on the device
• Supports displays – Ideal for interactive dashboards, status panels, and Meshtastic mUI devices
• Built for mesh networking – Perfect for Meshtastic and long-range communication setups

Note:
1. The antenna of Check to Include is a supporting antenna for certification.
2. When purchasing Blade Antenna, you need to use it with IPEX TO RP-SMA/SMA Connector type iPEX (MHF-4) variant.
3. As our customers are starting mass production and deploying their products globally, we want to clarify that our modules' hardware supports multiple LoRaWAN regions. As there is no difference in the hardware, we optimized the variants in our store to make it easier to select the correct module. Please note that the difference between the variants is only in the label on the module, which reflects the different regional telecommunication certifications.
4. "With IPEX" variant has different hardware on RF path compared to "No IPEX" variant. This means the RF pinout is disconnected internally if "With IPEX" variant is selected. This is also the case if "No IPEX" is selected, IPEX connector RF path is disconnected.

Key Features of RAK3112 LoRa Module

• Powered by ESP32-S3: Dual-core 240 MHz CPU with vector instructions, AI acceleration, and LCD controller support
• Built-in SX1262 LoRa Transceiver: High-performance long-range communication
• 3-in-1 Connectivity: LoRa + WiFi + BLE
• Edge-AI Ready: Supports lightweight neural networks (ESP-DL)
• Ideal for Meshtastic: Mesh-ready platform for secure, decentralized communication
• Onboard Flash: Up to 16MB for custom firmware and storage

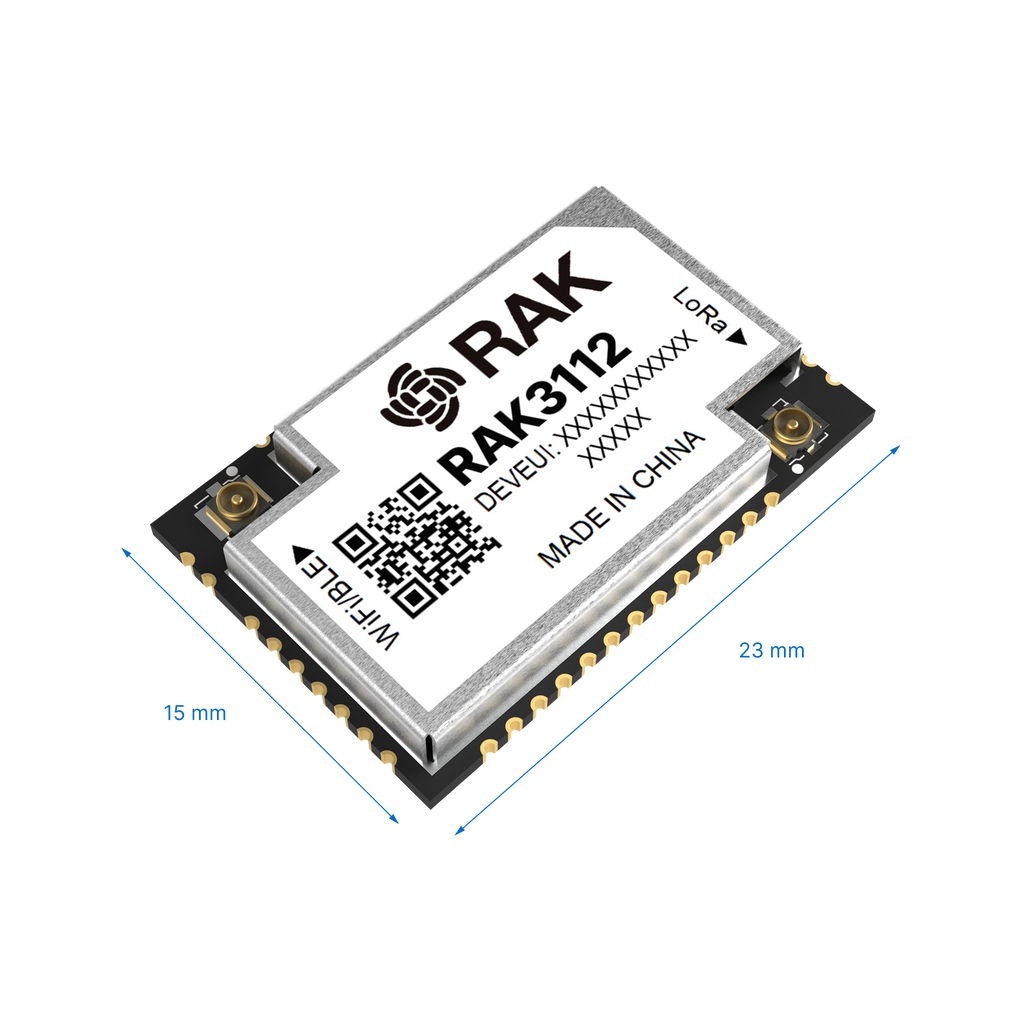

• Compact Form Factor: 15 mm x 23 mm x 3 mm stamp pad module
• Supply Voltage: 3.0 V ~ 3.6 V
• Operating Temperature: -40 °C to +85 °C
• LoRaWAN Bands: EU868, US915, AU915, AS923, and more
• Firmware: Programmable via ESP-IDF, Arduino, PlatformIO

Key Benefits of RAK3112 LoRa Module

Enable smart edge devices with real-time display, control, and long-range LoRa communication.

• Compact yet powerful: Combines ESP32-S3 processing with SX1262 LoRa in one small module.
• Designed for intelligence at the edge: Run AI models, filter data, or trigger alerts locally.
• Display-ready for better UX: Seamlessly connects to LCD screens for rich local interfaces.

Use Case #1

Out in the forest, a team deploys handheld radios with Meshtastic and LCDs. Thanks to the RAK3112, they get reliable mesh communication and clear local readouts. No cell signal needed.

Use Case #2

During factory inspections, a technician uses a compact panel that shows live sensor data and alerts. Powered by RAK3112 Meshtastic ESP32 LoRa module, it runs on-device AI to detect anomalies without cloud access.

Comparison Table: RAK3112 and RAK11160

What’s in the Box

• 1 pc RAK3112

How to Get Started with RAK3112 LoRa Module

• RAK3112 WisDuo LPWAN+BLE+WiFi Module Overview
• RAK3112 WisDuo LPWAN+BLE+WiFi Module Datasheet
• RAK3112 WisDuo LPWAN+BLE+WiFi Module Quick Start Guide

Frequently Asked Questions

How do I start developing with the RAK3112 LoRa module for ESP32?

You can get started using popular development environments:

• ESP-IDF: Ideal for full-featured projects with deep ESP32 control.

• Arduino: Great for beginners or rapid prototyping.

• PlatformIO: Perfect for VS Code users or multi-environment projects.

What kind of applications can I build with RAK3112 WiFi, LoRa, and BLE module?

You can build:

• Mesh radios (like a Meshtastic node with screens)
• Edge AI sensor nodes (for detecting motion, air quality anomalies, etc.)
• Smart remote dashboards (HMI panels for LoRa-connected systems)
• Industrial monitoring systems (field-ready with long battery life and powerful computing)

How do I power the RAK3112?

The RAK3112 operates at 3.0V to 3.6V, making it suitable for a wide range of battery-powered or regulated power supply systems. For low-power applications, the ESP32-S3 offers various sleep modes that help extend battery life.
