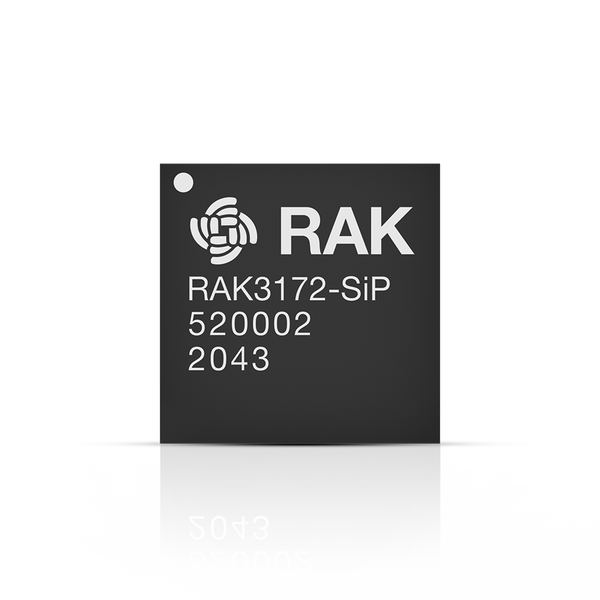

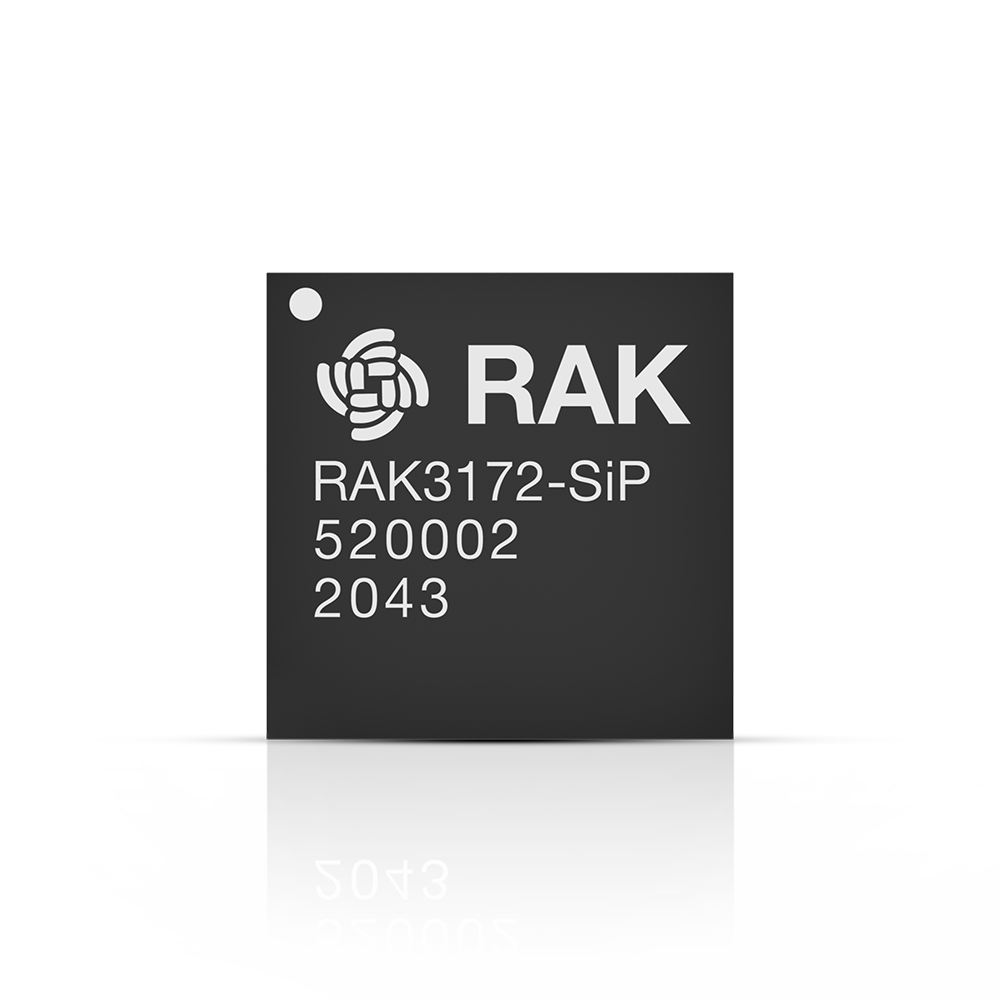

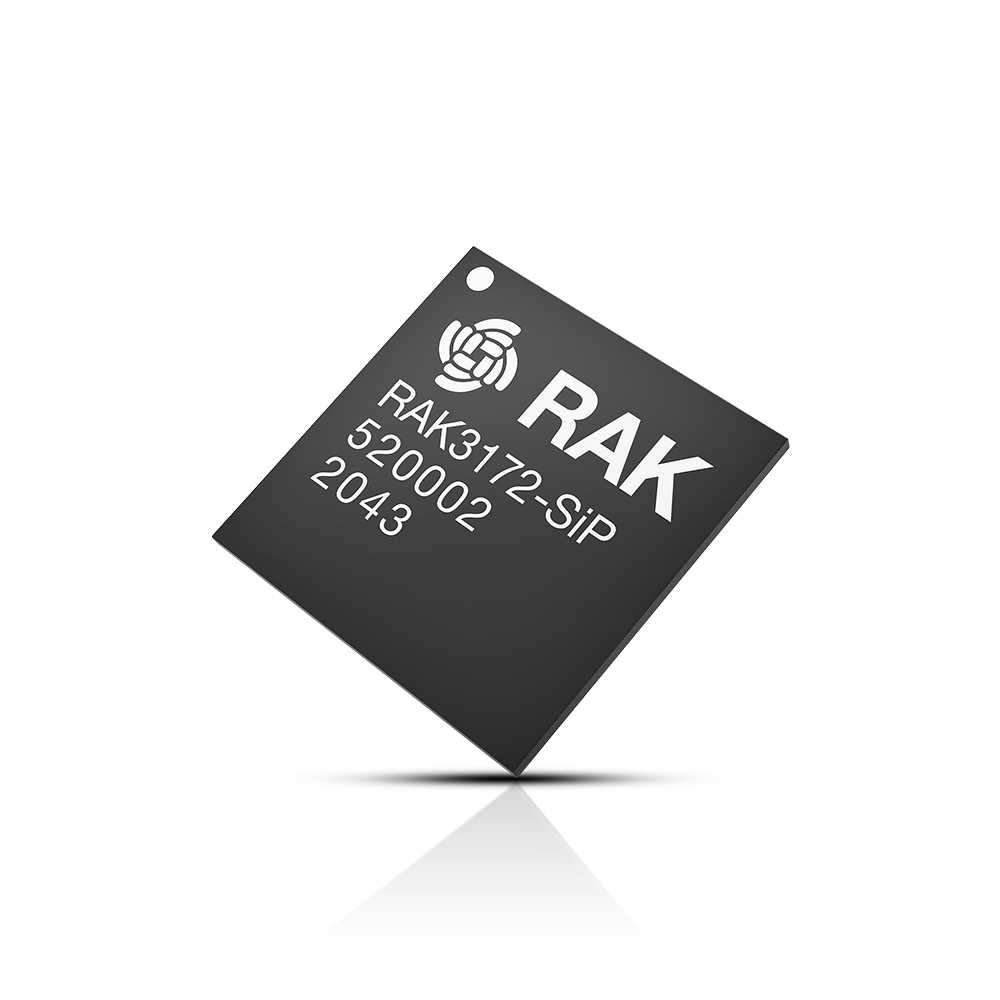

RAK3172-SiP STM32WLE5 SiP Module for LoRaWAN
RAK3172-SiP STM32WLE5 SiP Module for LoRaWAN

RAK3172-SiP STM32WLE5 SiP Module for LoRaWAN

SKU:305041
$5.99 $0.00
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.

Hover over your region on the map to see local country frequencies.



Elevate your RAK3172-SiP! Introducing an open-source RAK2270 project powered by RAK3172-SiP. Now you can even streamline your procurement process on the JLCPCB Marketplace. Explore components and order with ease!

RAK3172-SiP is a low-power long range transceiver system in a package (SiP) that is based on STM32WLE5CC chip. It provides an easy to use, small size, low-power solution for long range wireless data applications. This module complies with Class A, B & C of LoRaWAN 1.0.4 specifications. It can easily connect to different LoRaWAN server platforms like TheThingsNetwork (TTN), Chirpstack, Actility, etc. It also supports LoRa Point-to-Point (P2P) communication mode which helps you in implementing your own customized long-range LoRa network quickly.
You can configure the mode and operation of the module using AT commands via a UART interface. RAK3172-SiP also offers low power features which is very suitable for battery-powered applications. It is RUI3 compatible which allows you to create custom firmware using RUI3 APIs.

Note: The RAK3172-SiP does not come with pre-flashed LoRaWAN credentials. You can create unique EUI’s and Keys in the LoRaWAN server and set them on the RAK3172-SiP with AT commands.

SKU Model# Description Frequency
305041 RAK3172-SiP STM32WLE5 SiP Module for LoRaWAN 8XXMHz for EU868/IN865/RU864
306039 RAK3172-SiP STM32WLE5 SiP Module for LoRaWAN 9XXMHz for US915/AU915/KR920/AS923
305049 RAK3172LP-SiP Low Power Version STM32WLE5 SiP Module for LoRaWAN 8XXMHz for EU868/IN865/RU864
306049 RAK3172LP-SiP Low Power Version STM32WLE5 SiP Module for LoRaWAN 9XXMHz for US915/AU915/KR920/AS923



Features

  • Based on STM32WLE5
  • System-in-Package form factor
  • RUI3 API compatible
  • LoRaWAN 1.0.4 specification compliant
  • Supported bands: IN865, EU868, AU915, US915, KR920, RU864, and AS923
  • LoRaWAN Activation by OTAA/ABP
  • LoRa Point-to-Point (P2P) communication
  • Easy to use AT Command Set via UART interface
  • Long-range - up to 15 km with optimized antenna
  • Use TCXO for better frequency stability
  • ARM Cortex-M4 32-bit
  • 256 kbytes flash memory with ECC
  • 64 kbytes RAM
  • Ultra-Low Power Consumption of 1.69 μA in sleep mode
  • Supply Voltage: 2.0 V ~ 3.6 V
  • Temperature Range: -40° C ~ 85° C
  • Size: 12mm x 12mm x 1.22mm
  • Package: LGA73 type

Documentation

Transform Your Ideas into Reality with RAK3172-SIP!

Did you know that the RAK3172-SIP is the powerhouse behind our innovative RAK2270 LoRa® Sticker project - the most popular IoT Open Source Project in the community now? Whether you're a hobbyist or a professional, this module offers endless possibilities for your projects. Ready to build your dream sticker? Learn More and Get Started.

Become a RAK Affiliate and Earn Today!

Get paid to talk about RAK products! Join the RAK Affiliate program today.

Questions and Answers

Ask a Question

  • Hi, do you provide the package of the RAK3172 Sip, without the package it's not possible to integrate it into PCB. Thanks.

    You can get the package for the SiP from SnapMagic ==> https://www.snapeda.com/parts/RAK3172-SiP/RAK/view-part/?ref=search&t=RAK3172-SiP
