WisGate Edge Lite 2

What Is WisGate Edge Lite 2?

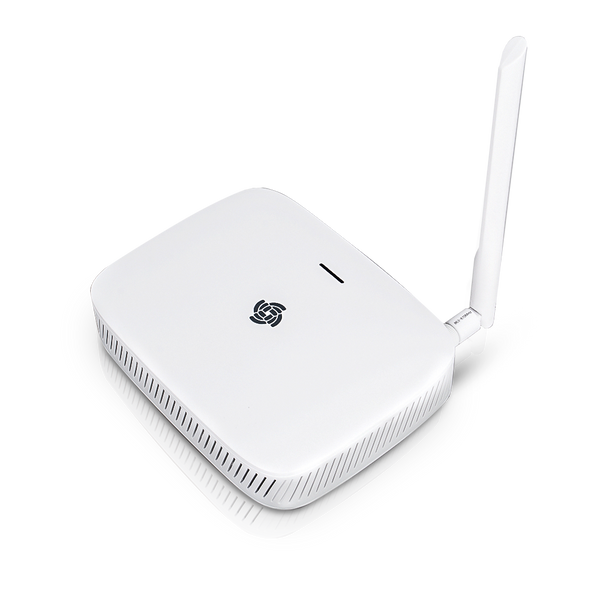

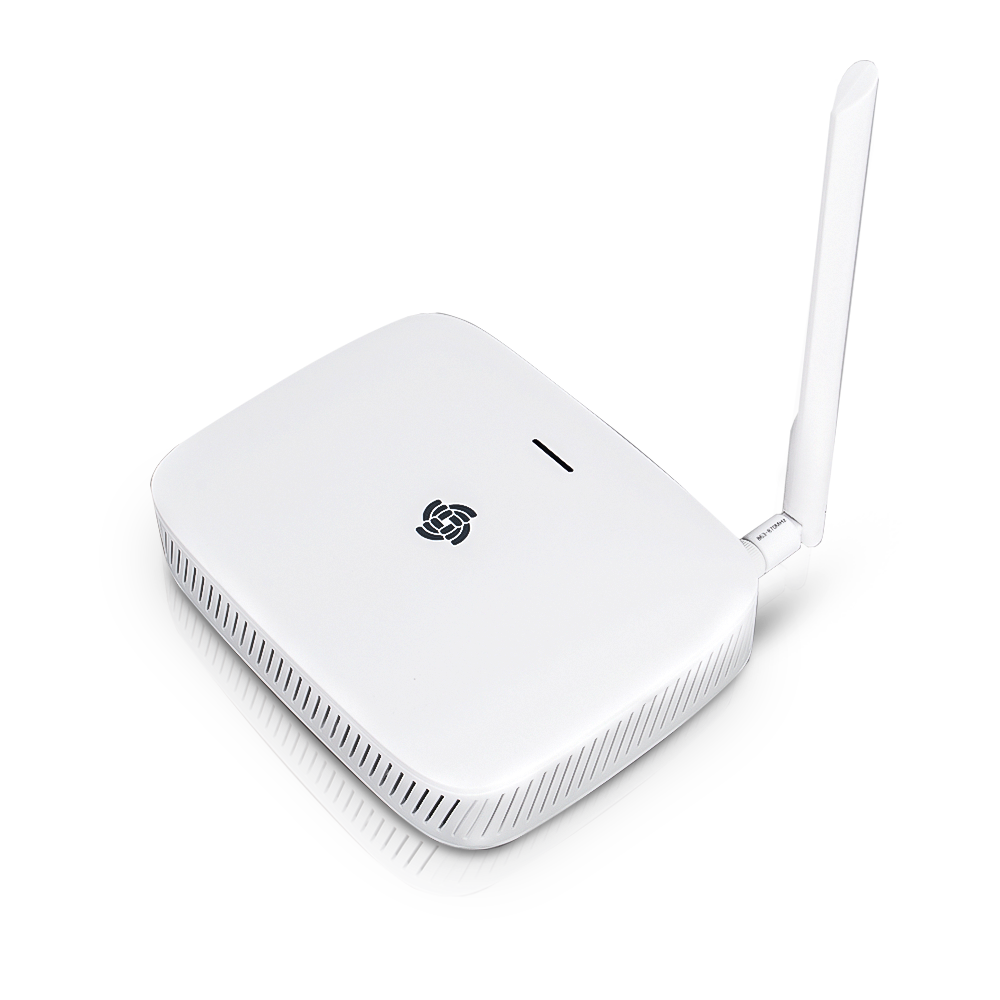

The WisGate Edge Lite 2 (RAK7268V2/RAK7268CV2) is a high-performance 8-channel LoRaWAN gateway designed for smart buildings, industrial applications, remote monitoring, and off-grid deployments. It offers flexible connectivity options, including Ethernet, Wi-Fi, and optional LTE, ensuring seamless integration into diverse IoT environments.

This gateway runs on WisGateOS 2, providing intuitive management, enhanced security, and remote monitoring capabilities via the WisDM platform. With multiple power input options (PoE + 12V DC or 9-24V DC) and LoRaWAN gateway LTE configurations (built-in or external antenna), the RAK7268 series adapts to various deployment scenarios.

Why You Need WisGate Edge Lite 2

The WisGate Edge Lite 2 is a versatile off-grid LoRa gateway designed for seamless IoT connectivity. With flexible power options, reliable LTE, and remote management, it’s built for smart buildings, industrial IoT, and remote deployments.

Why it's useful:

• PoE Power Supply – Ideal for networked environments where PoE is available, ensuring a simplified setup with fewer cables.
• 12V DC Power Input – Standard option for consistent power supply.
• 9-24V DC Power Input – Designed for industrial and off-grid deployments, offering higher voltage tolerance for stable, long-term operation.
• Built-in LTE Antenna – Compact, space-saving, and perfect for urban or standard LTE coverage areas.
• External LTE Antenna – Delivers stronger reception, making it ideal for remote areas, weak signal environments, or industrial setups requiring enhanced LTE performance.
• 8 LoRa Channels – Reliable, high-performance connectivity for IoT devices.
• Multi-Backhaul Support – Choose between Ethernet, Wi-Fi, or LTE for uninterrupted connectivity.
• LoRa Frame Buffering with SD Card – Prevents data loss when network connections are temporarily unavailable.
• WisGateOS 2 – A unified, intuitive OS with advanced features, customizable add-ons, and improved security.
• WisDM Cloud Management – Monitor, control, and update your gateway remotely, reducing maintenance costs and increasing uptime.
• LoRa Frame Filtering & Secure MQTT Bridging – Ensure efficient data transmission and encryption for secure IoT communication.
• Support for Zero Touch Provisioning – Your LoRaWAN gateway arrives pre-configured, saving you time and effort on setup.

Key Features of WisGate Edge Lite 2

• Hardware
  • 8 LoRa Channels – Reliable long-range wireless communication.
  • 2.4 GHz Wi-Fi AP Mode – Enables easy local configuration.
  • 100M Base-T Ethernet with PoE – Wired connectivity for stable networking.
  • Flexible Power Input Options:
    • 12V DC Power Input (for standard direct power setups)
    • 9-24V DC Power Input (for industrial or off-grid deployments requiring higher voltage tolerance)
  • Multi Backhaul Connectivity: Ethernet, Wi-Fi, and LTE (RAK7268CV2 models only).
  • RP-SMA LoRa Antenna Connector – Ensures reliable LoRa signal performance.
  • SD Card Slot – Supports log backup & LoRa frame buffering (prevents data loss during network outages).
  • LTE Cat 4 Network (Optional):
    • Built-in LTE Antenna (LoRa gateway with LTE for easy integration in normal signal areas)
    • External LTE Antenna (for improved connectivity in low-signal environments)
  • Breathing LED Indicator – Provides real-time status updates.
  • Certifications – RAK7268V2/RAK7268CV2 meets industry standards for safety, reliability, and regulatory compliance. See the full list of certifications here.
• Software
  • WisGateOS 2 – Unified OS with enhanced UI and custom extension add-ons.
  • Built-in LoRa Network Server – Supports LoRaWAN 1.0.3 (1.0.4 update coming soon).
  • Supports Basics Station & Packet Forwarder – Flexible network compatibility.
  • LoRa Frame Filtering (Node Whitelisting) – Ensures efficient network traffic management.
  • Secure MQTT v3.1 Bridging with TLS Encryption – Protects LoRaWAN data communications.
  • Supports popular LoRaWAN Network Servers: TTI, AWS IoT, Actility, Loriot, Chirpstack
  • LoRa Frame Buffering in Packet Forwarder Mode – Ensures no data loss during network failures.

Important Notes:

• Gateways with LBT (Listen Before Talk) do not support LTE connectivity. If you need both LBT and LTE, consider the WisGate Connect series.

Key Benefits of WisGate Edge Lite 2

A flexible industrial LoRaWAN gateway that provides reliable connectivity, secure data handling, and easy remote management across various IoT applications.

• Reliable Connectivity: 8 LoRa channels with multi-backhaul support for stable IoT operations.
• Flexible Power Options: Supports 12V DC and 9-24V DC for diverse deployment scenarios.
• Optimized LTE Performance: Built-in and external antenna options for different coverage needs.
• Advanced Security: Secure MQTT bridging and LoRa frame filtering for data protection.
• Effortless Management: WisDM cloud platform for remote monitoring and maintenance.

Use Case #1

An office building installs WisGate Edge Lite 2 for energy monitoring and security automation. PoE makes setup quick with minimal wiring, while WisDM cloud management allows remote configuration and real-time monitoring, keeping operations efficient.

Use Case #2

A farm relies on WisGate Edge Lite 2 to track soil conditions and weather patterns. With an external LTE antenna, it maintains a strong connection in a low-signal area, ensuring real-time data for better irrigation and crop management.

How to Choose the Right Variant?

Power Input Options:

• 12V DC – Best for PoE-enabled networks, indoor setups, and easy installation.
• 9-24V DC – Ideal for industrial and off-grid deployments where higher voltage flexibility is needed.

Note: Both 12V DC and 9-24V DC support PoE power supply.

LTE Connectivity Options:

• No LTE (Wi-Fi + Ethernet Only) – For stable network environments with wired/Wi-Fi access.
• LTE (Built-in Antenna) – Compact setup, suitable for standard LTE coverage areas.
• LTE (External Antenna) – Ideal for weak signal areas, remote locations, or industrial deployments where strong LTE connectivity is essential, making it a reliable choice for a remote IoT monitoring gateway.

What’s in the Box

1 pc RAK7268V2 / RAK7268CV2 Gateway
1 pc LoRa Antenna
1 pc Power Supply (Depends on selected power option)
1 pc Mounting Bracket
Documentation (Quick Start Guide, Datasheet, and LoRa Network Server Support)

How to Get Started with WisGate Edge Lite 2

• Quick Start Guide
• Support LoRa Network Servers
• Datasheet

Frequently Asked Questions

What is Zero Touch Provisioning (ZTP)?

ZTP allows your IoT LoRaWAN gateway to be pre-configured at the factory, so you don’t have to manually set up network parameters upon its arrival. A ZTP LoRaWAN gateway simplifies deployment by enabling automatic provisioning, reducing setup time and potential configuration errors.

How can I get the Gateway SDK for customization?

RAK provides a Gateway SDK for advanced customization and integration with third-party applications. If you need access to the SDK for developing custom applications, modifying gateway behavior, or integrating with a proprietary system, please contact RAKwireless support or visit our developer resources page.

To request the SDK, contact us at inquiry@rakwireless.com.

What network servers are supported?

The RAK7268V2/RAK7268CV2 LoRaWAN gateway supports multiple LoRaWAN network servers, including:

• ChirpStack – Open-source LoRaWAN network server
• The Things Network (TTN) – Free and community-driven network server
• AWS IoT Core for LoRaWAN – Cloud-based LoRaWAN server by AWS
• Actility (ThingPark Wireless) – Enterprise-grade LoRaWAN network
• Loriot – Professional LoRaWAN network provider

Flexible Deployment: You can use WisGateOS 2’s built-in LoRa Network Server or connect the gateway to an external network server based on your project needs.

Is this an 8-channel LoRaWAN gateway? What’s the advantage over a single-channel LoRaWAN gateway?

Yes, the RAK7268V2/RAK7268CV2 is an 8-channel LoRaWAN gateway, designed for reliable, scalable deployments.

Advantages over Single-Channel LoRaWAN Gateways:

• Handles multiple LoRa nodes simultaneously – Unlike single-channel gateways that can only process one LoRa transmission at a time, 8-channel gateways can handle multiple transmissions, improving network efficiency.
• Better coverage and reliability – Supports different spreading factors (SF7-SF12), ensuring better signal reception and increased coverage.
• LoRaWAN-compliant – Fully compatible with LoRaWAN networks, allowing integration with standard LoRaWAN sensors and applications.
• Suitable for real-world deployments – Single-channel gateways are mainly for testing and experimentation, while 8-channel gateways like the RAK7268 are designed for commercial and industrial use.

Can I manage the gateway remotely?

Yes! The RAK7268V2 / RAK7268CV2 supports remote management via WisDM (RAK’s cloud-based management platform).

With WisDM, you can:

• Monitor gateway health in real time (status, logs, and performance).
• Remotely update firmware and apply security patches.
• Configure and adjust gateway settings without on-site access.
• Scale deployments efficiently, managing multiple gateways from a single dashboard.

Alternative Remote Management Options:

• If you prefer self-hosted management, you can use MQTT, SSH access, or RESTful APIs to integrate with your existing system.

Learn more about WisDM here.
