SKU:815028
Regular price $179.00 $0.00
Variant prices start at $179.00 to $259.00.
The shipping fee is calculated at checkout.
Prefer another courier for your delivery? Contact us for special shipping arrangements.


Note: Helium is not accepting these gateways into the blockchain for now as the Alpha Hotspot program has ceased, consult using this Discord channel for details. If you want to actively participate in the Helium network and earn HNT please order our RAK Hotspot V2 instead.
NoteThe Raspberry Pi is not included in this Kit.

Product Description

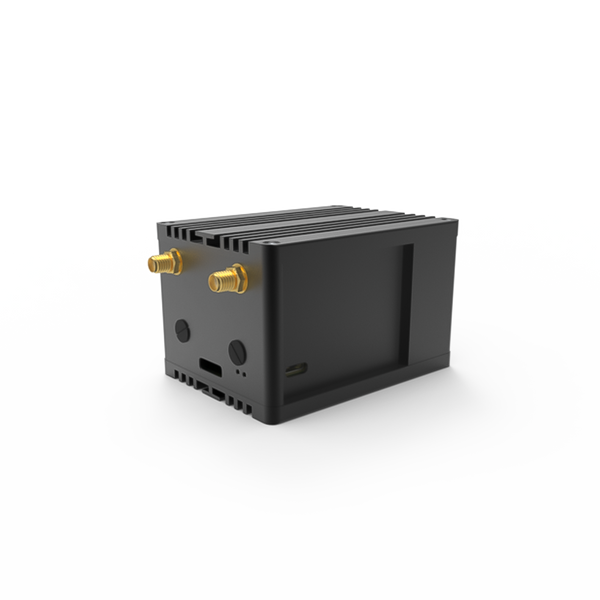

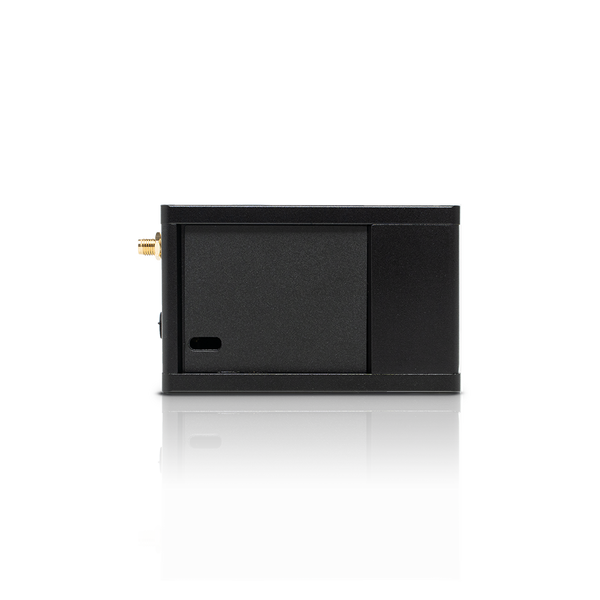

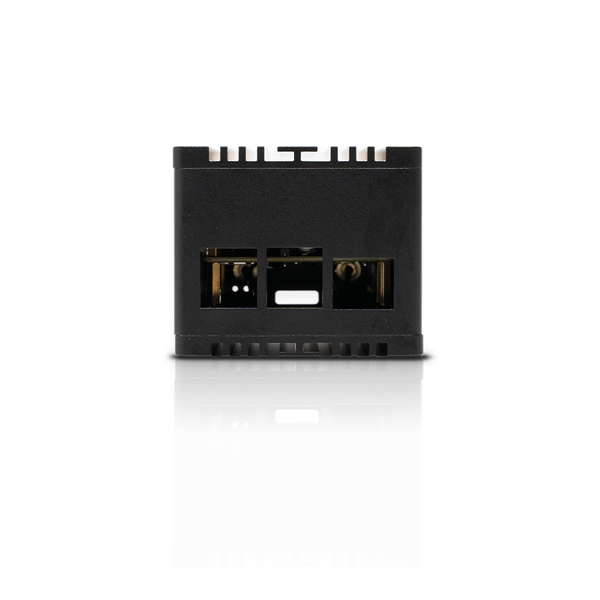

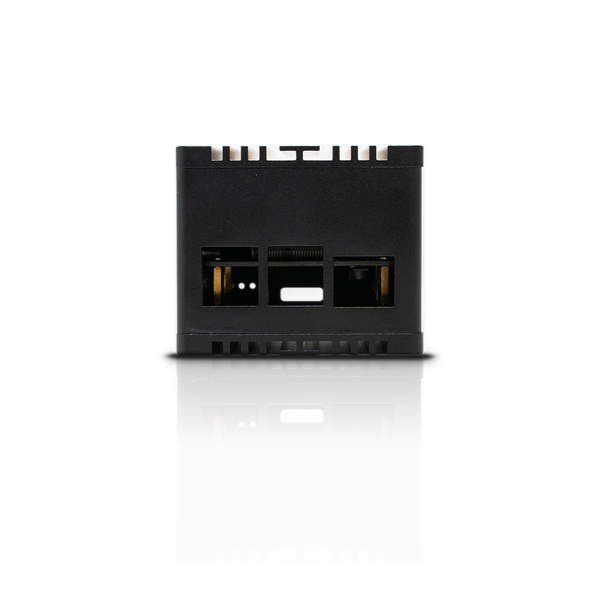

This kit contains all the hardware and accessories needed to build a fully functional Developer gateway using your own Raspberry Pi 4. It includes the latest RAK5146 SPI concentrator, based on the SX1303 LoRa core. The kit is available in two variants with and without cellular connectivity. If the cellular variant is selected, the kit includes the WisLink Cellular RAK2013 PiHAT, which provides multi-band LTE and UMTS/HSPA+ connectivity.

To know the difference between EG95-E and EG95-NA, please refer to the following table:

Frequency EG95-E EG95-NA
LTE FDD B1/B3/B7/B8/B20/B28A B2/B4/B5/B12/B13
WCDMA B1/B8 B2/B4/B5
GSM/EDGE B3/B8
Region EMEA North America
Carrier Certification* Verizon/ AT&T/ T-Mobile/ Telus/ U.S. Cellular/ Rogers
Regulatory Certification* GCF/ CE/ RCM/ FAC GCF/ FCC/ PTCRB/ IC
Other Certifications* WHQL WHQL

Package Inclusions

Gateway Kit for Raspberry Pi

  • WisLink LPWAN RAK5146 SPI with GPS LoRa concentrator
  • WisHAT RAK5146/RAK2287 PiHAT
  • 16GB SD card
  • Enclosure
  • RP-SMA to IPEX cable for the LoRa antenna
  • SMA to IPEX cable for the GPS antenna
  • LoRa antenna 2.3dBi
  • GPS antenna
Gateway Kit for Raspberry Pi with Cellular
  • WisLink LPWAN RAK5146 SPI with GPS LoRa concentrator
  • WisHAT RAK5146/RAK2287 PiHAT
  • WisLink Cellular RAK2013 LTE PiHAT
  • 16GB SD card
  • Enclosure
  • RP-SMA to IPEX cable for the LoRa antenna and LTE antennas(3pcs)
  • LTE antennas(2pcs)
  • SMA to IPEX cable for the GPS antenna
  • LoRa antenna 2.3dBi
  • GPS antenna
