WisMesh WiFi MQTT Gateway

What Is WisMesh WiFi MQTT Gateway?

The WisMesh WiFi MQTT Gateway is the ideal Meshtastic WiFi MQTT gateway for connecting your Meshtastic devices to the cloud. It provides an interface from your Meshtastic nodes to either the Meshtastic MQTT Broker or your own MQTT Broker. Whether you need to send sensor data, location information, or text messages to the cloud, this device meets your requirements.

At its core, the WisMesh WiFi MQTT Gateway is built around a WisBlock Core Module with pre-flashed Meshtastic firmware, enabling reliable connectivity using WiFi, Bluetooth Low Energy (BLE), and LoRa, and functioning as a robust LoRa MQTT gateway for cloud-connected mesh networks.

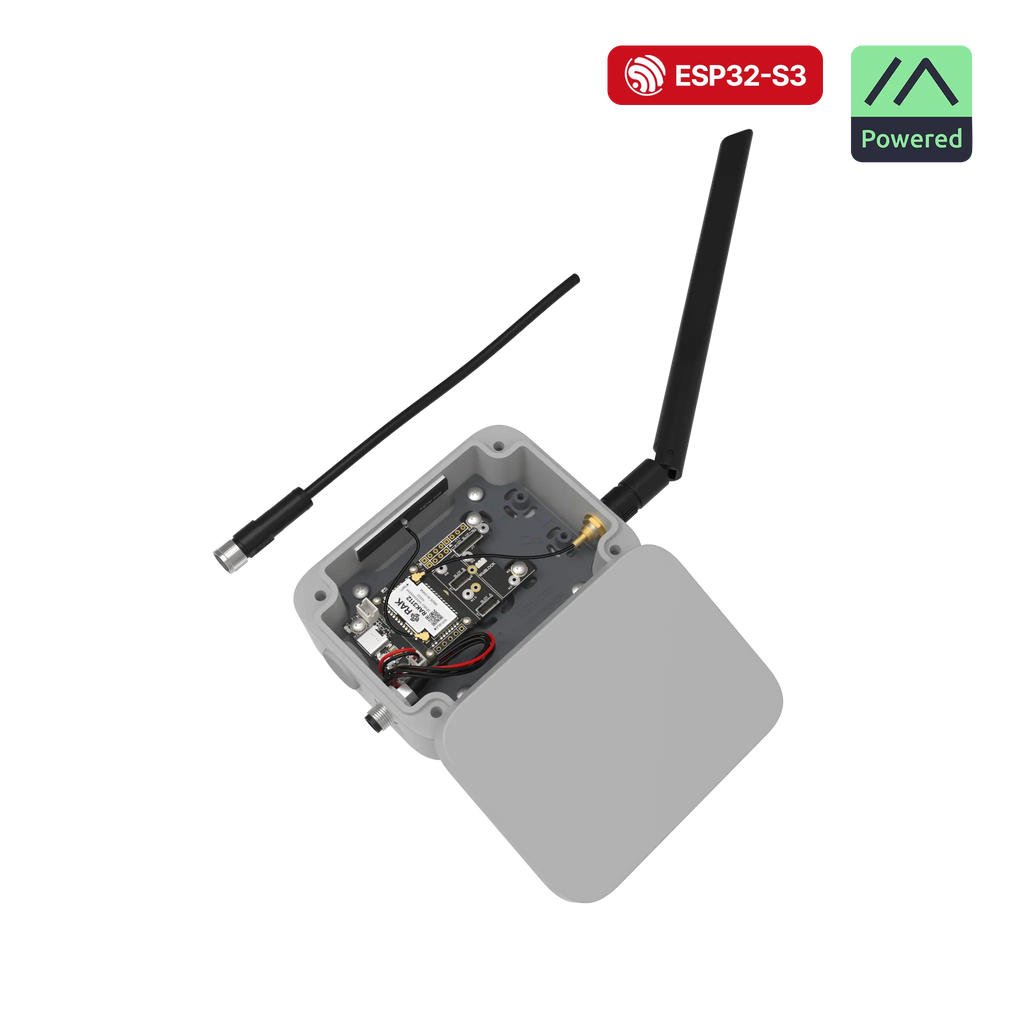

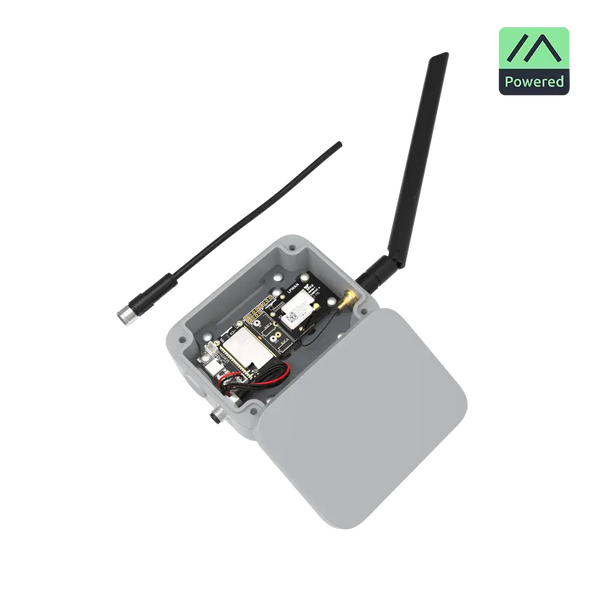

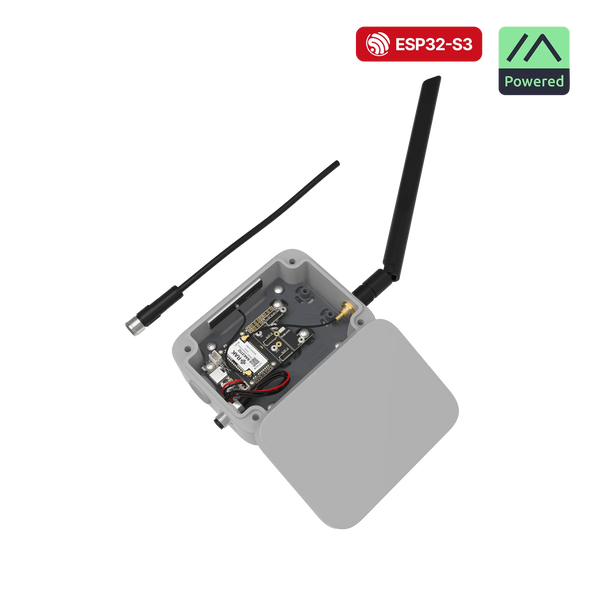

For ease of deployment, the device is optionally available pre-assembled in the compact WisMesh Unify Enclosure (IP65-rated, 100 mm x 75 mm x 38 mm). It also supports multiple mounting kits. Whether you need to attach it to a pole, wall, belt, or rail, we’ve got you covered.

Hardware Update: From RAK11200 to RAK3312

The earlier version of the gateway was based on the WisBlock RAK11200 Core Module, which used the ESP32-Wrover module. Espressif has since discontinued production of the ESP32-Wrover, making the RAK11200 end-of-life (EOL). To ensure continued availability and improved performance, the current hardware revision (V2) uses the WisBlock RAK3312 Core Module, featuring the ESP32-S3 and an integrated LoRa transceiver. This updated design consolidates WiFi, BLE, and LoRa into a single module, resulting in a more powerful and streamlined gateway architecture.

Why You Need WisMesh WiFi MQTT Gateway

This Meshtastic WiFi MQTT gateway enables real-time transmission of sensor data, location information, and text messages to any MQTT broker.

Why it’s useful:

• Facilitates real-time data transmission and remote monitoring.
• Capable of transmitting sensor data, location information, and text messages.
• Features an optional IP65-rated Unify Enclosure.
• Integrated WiFi, Bluetooth Low Energy (BLE), and LoRa support reliable gateway operation.
• Pre-flashed with Meshtastic firmware and designed for straightforward setup.

Key Features of WisMesh WiFi MQTT Gateway

Reliable Multi-Protocol Connectivity

• WisBlock RAK3312 Core Module
• WisBlock Core module based on Espressif ESP32-S3 dual-core MCU
• Integrated Semtech SX1262 LoRa transceiver
• WiFi, LoRa, and Bluetooth connectivity
• 512 kB SRAM, 8 MB PSRAM, 16 MB external Flash
• Supports custom firmware development using Arduino IDE or Espressif ESP-IDF

Modular, Expandable Hardware Platform

• WisBlock RAK19007 Base Board
• Compact 30 mm x 60 mm with 4 Sensor Slots and 1 IO slot
• USB Type C debug port
• 1 slot for WisBlock Core MCU
• 4 slots for modules with 24-pin WisBlock Sensor Modules

Optimized LoRa Antenna for Reliable Coverage

• WisMesh Antenna
  • 800 MHz variant

  • • Frequency Range: 863~870 MHz
    • VSWR: ≤ 1.3
  • 900 MHz variant

    • Frequency Range:902~928 MHz
    • VSWR: ≤ 1.5
  • Black high-performance LoRa antenna
  • High efficiency
  • Omnidirectional
  • Vertically polarized


Durable, Weather-Resistant Enclosure Option

• WisMesh Unify Enclosure
• 100 mm x 75 mm x 38 mm (as per option selected)
• IP65-rated with M8 5-pin connector, RP-SMA antenna connector
• Material: ABS UL94V-0 (flame-retardant)
• External dimensions: 100 mm x 75 mm x 38 mm (including lid)

The earlier version of the WisMesh WiFi MQTT Gateway was built using the WisBlock RAK11200 Core Module paired with a separate RAK13300 LoRa module. The current V2 design consolidates WiFi, BLE, and LoRa into the single RAK3312 Core Module for improved integration and reduced system complexity.

Key Benefits of WisMesh WiFi MQTT Gateway

The WisMesh WiFi MQTT Gateway connects Meshtastic devices to the cloud, facilitating efficient data transmission and expanding communication capabilities as a dedicated Meshtastic MQTT gateway.

• Versatile data transmission: Supports sending sensor data, location information, and text messages, catering to diverse application needs.
• Durable design: Available with an IP65-rated enclosure, ensuring reliable performance in various environmental conditions.
• Flexible mounting options: Supports multiple, allowing mounting kits installation on poles, walls, belts, or rails to suit different deployment scenarios.

Use Case #1: Meshtastic MQTT Gateway for Agriculture Monitoring

In remote agricultural settings, farmers can deploy the WisMesh WiFi MQTT Gateway as a WiFi gateway for Meshtastic devices to monitor soil moisture levels and weather conditions. This real-time data transmission aids in optimizing irrigation schedules and improving crop yields.

Use Case #2: Emergency Communication Using Meshtastic and MQTT

During disaster response efforts, emergency teams can utilize the WisMesh WiFi MQTT Gateway as an MQTT gateway for LoRa mesh networks to maintain communication in areas where traditional networks are compromised. This ensures coordination and safety for both responders and affected communities.

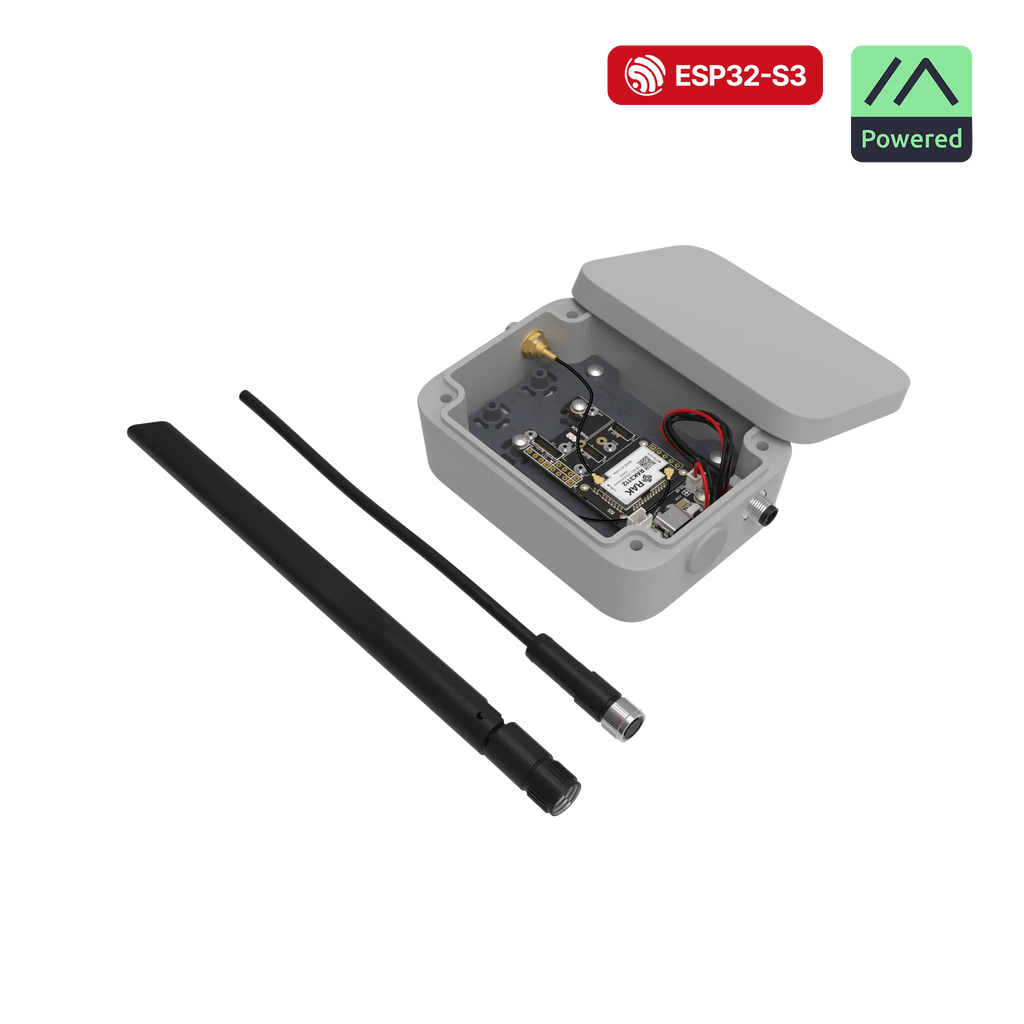

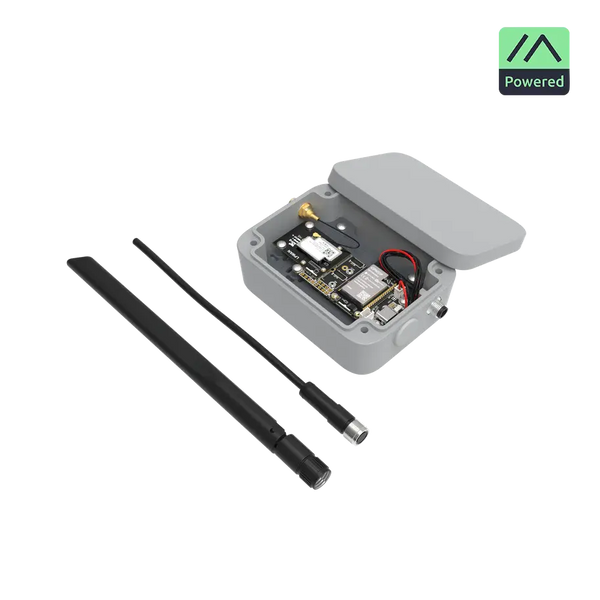

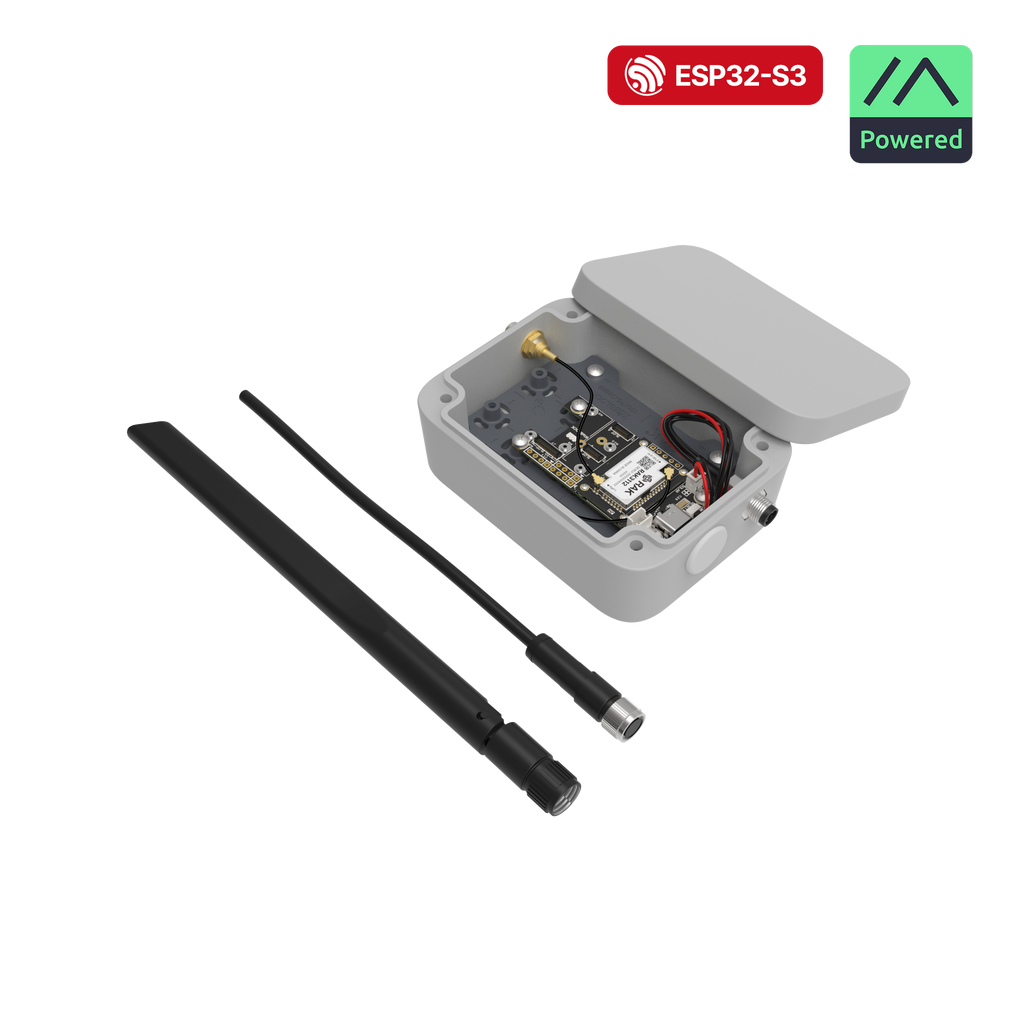

What’s in the Box

• With WisMesh Unify Enclosure 100 mm x 75 mm x 38 mm
• 1 pc WisMesh WiFi MQTT Gateway
• 1 pc WisMesh Blade Antenna
• 1 pc USB Cable
• 1 pc 200mm M8 Cable
• Without Enclosure
• 1 pc WisBlock RAK19007 Base Board
• 1 pc WisBlock RAK3312 Core Module
• 1 pc WiFi /BLE Antenna
• 1 pc PCB Antenna for LoRa
• 1 pc USB Cable
• 1 set Screw

How to Get Started with WisMesh WiFi MQTT Gateway

• First Steps of WisMesh WiFi MQTT Gateway with Enclosure
• Overview of Meshtastic WisMesh WiFi MQTT Gateway
• Quick Start Guide of WisMesh WiFi MQTT Gateway
• WisMesh Basic Device Setup Guide
• WisMesh MQTT Gateway Setup Guide
• Meshtastic Firmware
