Product Description
Unify Enclosure IP67 150x100x45mm
The Unify Enclosures are modular IP67 rated outdoor enclosures that include tailored features to support WisBlock Base Boards and WisBlock Modules, but are highly adaptable to any application with spacious internals and thoughtfully designed universal mounting options.
Deployment of your IoT solution is easy thanks to a range of swappable mounting accessories that enable you to install your IoT solution in any setting. These accessories are hosted on the rear surface of the enclosure using the integrated mounting locations and are secured with M3 fasteners into robust and reusable brass threaded inserts.
The 150x100x45mm enclosure has enough internal space to support the following WisBlock Base Boards - RAK19001 and simultaneously a RAK19003, RAK19007, RAK5005-O.
There is also space for a flat profile LiPo battery to be hosted under an internal mounting plate. The space available below a mounting plate in standard configuration is approximately 107x57x6mm excluding narrow sections where there are enclosure features.

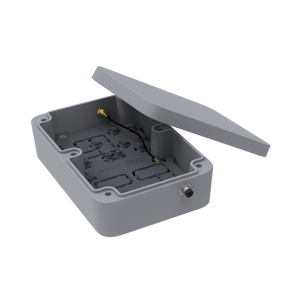

The variant with pre-mounted M8 5pin connector (IP rated) and RP-SMA (IP rated) antenna connector offers to use the enclosure with external antenna and the option to supply the WisBlock solution with 5V through the M8 connector or connect a solar panel to recharge a battery inside the enclosure (optional, battery and solar panel are not included).
The M8 connector is a 5 pin variant with 2 pins for 5V or solar panel power supply and 3 pins for input or output signals. The cable inside the enclosure comes pre-mounted with a matching connector to the solar panel connector of the WisBlock Base Boards. The remaining 3 pins are with solder-ready end points.
If access to the USB ports of the WisBlock Base Boards is required, we offer drill guide jigs that can be 3D printed. These jigs are to place the holes at the correct position for RAK19007, RAK19001 or RAK19011 Base Boards.
Accessories Supported:
- Unify WisBlock Mounting Plate 150x100x45mm - Allowing you to create your own custom internal mounting solution easily with WisBlock hardware
- Unify Mounting Plate Blank 150x100x45mm - Allowing you to create your own custom internal mounting solution for any hardware
- Unify Pole Mounting Vertical Kit (Type A)
- Unify Pole Mounting Horizontal Kit (Type B)
- Unify Pole Mounting Horizontal Kit (Type C)
- Unify Wall Mounting Kit (Type D)
- Unify Belt Clip Kit (Type E)
- Unify DIN Rail Mounting Kit (Type F)
- Unify Magnet Mounting Kit (Type G)
- Unify Belt Loop Kit (Type H)
- Unify Label Kit (Type I)
- Unify Hook Loop Kit (Type J)
Accessories NOT supported:
- Unify Pole Mounting Horizontal Kit (Type B)
Enclosure Specifications:
- Material: ABS UL94V-0
- External Size: 150x100x50mm(including lid)
- Internal Space: Approx.138x88x35mm in widest region (Usable space varies due to internal features-Narrowest point of the internal width= 60mm)
- General Wall Thickness: 4.5mm
- Silicone waterproof seal (square profile to prevent twisting upon install)
- Brass threaded inserts throughout (blind type)
Mounting Plate

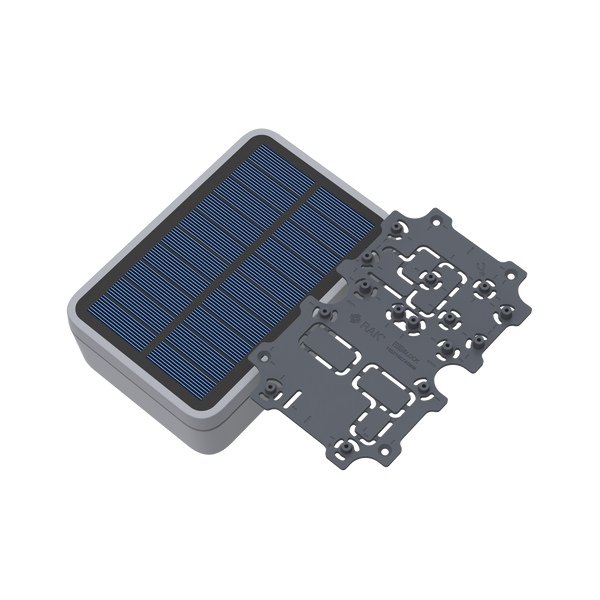

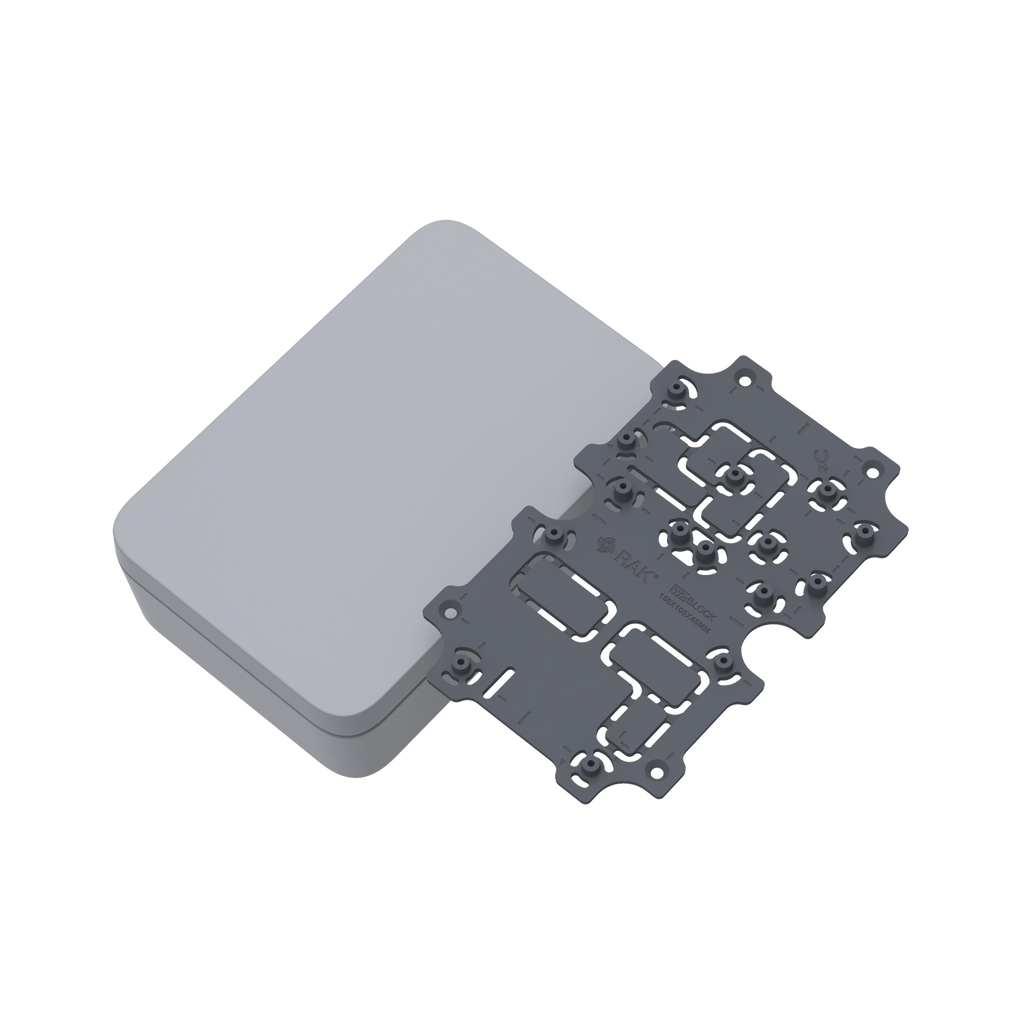

1. Unify WisBlock Mounting Plate with screw bosses for 150x100x45mm Enclosure (Bespoke Plate)
This mounting plate fits perfectly into the Unify Enclosure 150x100x45mm and has integrated screw bosses to support RAK19001 and simultaneously RAK19003, RAK19007 and RAK5005-O.
The mounting plate can be adapted easily to accommodate each of the Base Boards and any attached sensors by the removal of sections of the mounting plate that are not required by using of simple hand operated side-cutters to cut away the unnecessary sections.
Unify WisBlock Mounting Plate with Screw Bosses Specifications:
- Compatible only with Unify Enclosure IP67 150x100x45mm
- Supports RAK19001
- Supports RAK19003 (Simultaneously with 1 x RAK19001)
- Supports RAK19007 (Simultaneously with 1 x RAK19001)
- Supports RAK5005-O (Simultaneously with 1 x RAK19001)
- Thickness: 2mm
- Includes M3 countersink screws to mount to the enclosure
- Includes self-tapping screws to mount the WisBlock Base Board to the mounting plate

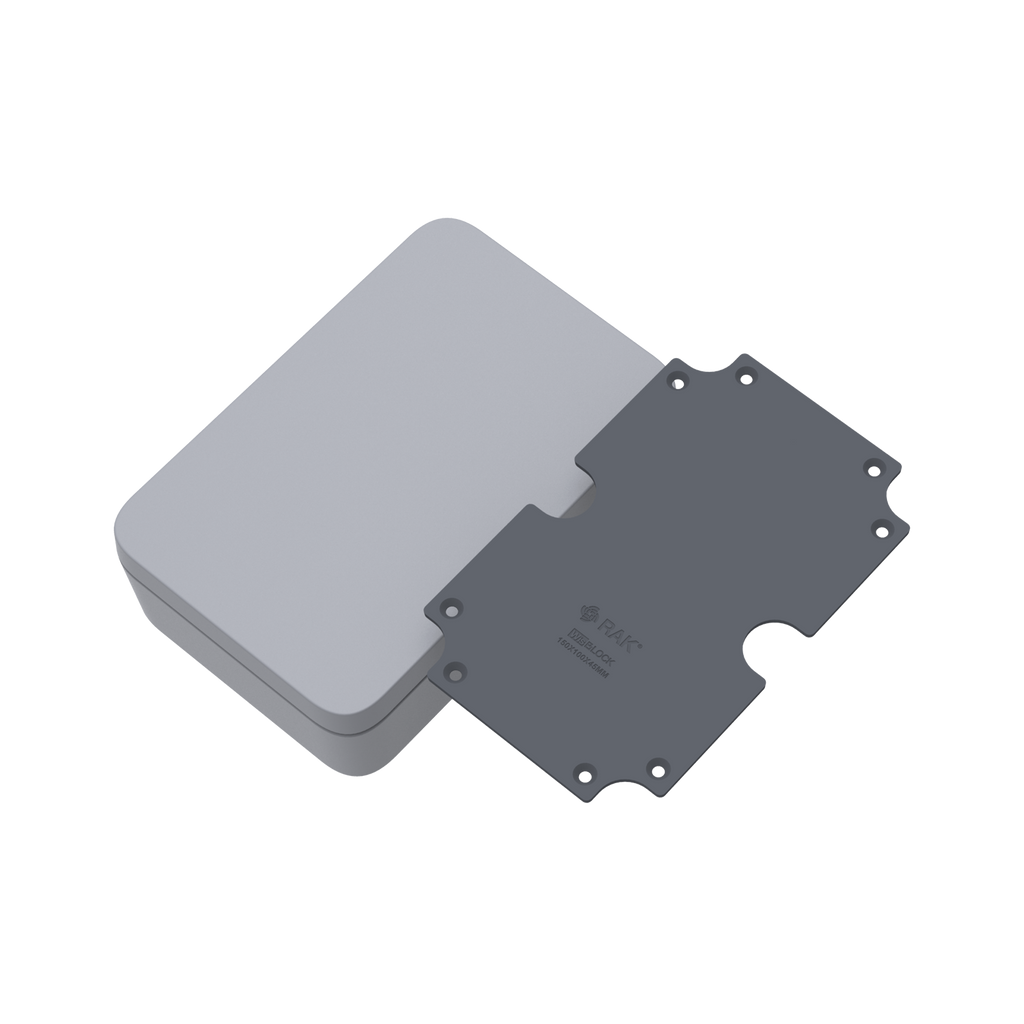

2. Unify Mounting Plate Blank for 150x100x45mm Enclosure (Blank Plate)
This mounting plate fits perfectly into the Unify Enclosure 150x100x45mm and enables you to implement your own custom mounting solution.
Unify Mounting Plate Blank Specifications:
- Compatible only with Unify Enclosure IP67 150X100X45mm
- Thickness: 2mm
- Includes M3 countersink screws to mount to the enclosure
