Unify Enclosure IP67 150x100x45mm

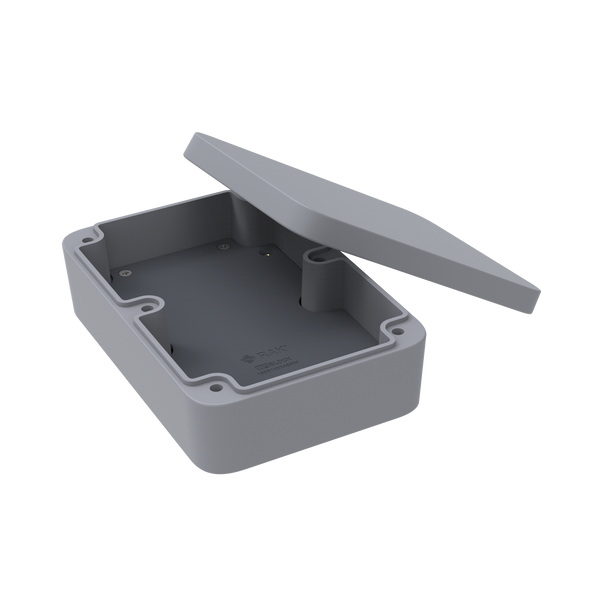

The Unify Enclosures are modular IP67 rated outdoor enclosures that include tailored features to support WisBlock Base Boards and WisBlock Modules, but are highly adaptable to any application with spacious internals and thoughtfully designed universal mounting options.

Deployment of your IoT solution is easy thanks to a range of swappable mounting accessories that enable you to install your IoT solution in any setting. These accessories are hosted on the rear surface of the enclosure using the integrated mounting locations and are secured with M3 fasteners into robust and reusable brass threaded inserts.

The 150x100x45mm enclosure has enough internal space to support the following WisBlock Base Boards - RAK19001, RAK19003, and RAK19007.

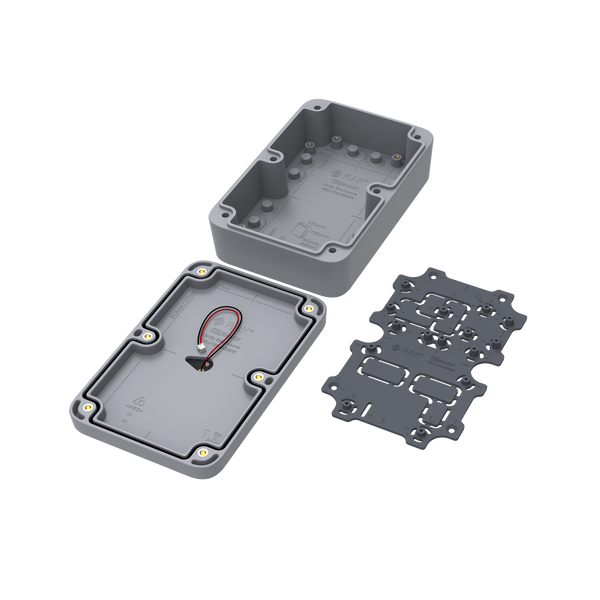

There is also space for a flat profile LiPo battery to be hosted under an internal mounting plate. The space available below a mounting plate in standard configuration is approximately 107x57x6mm excluding narrow sections where there are enclosure features.

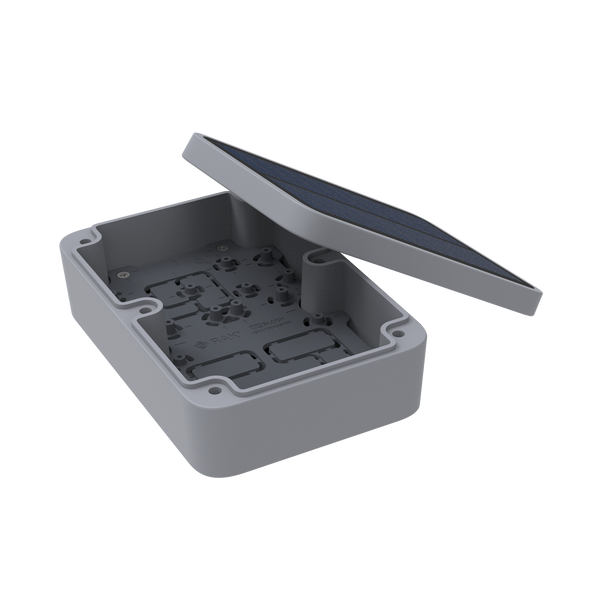

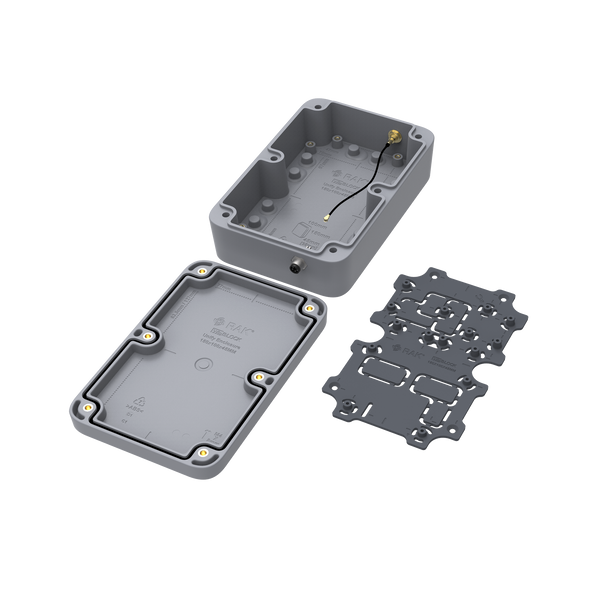

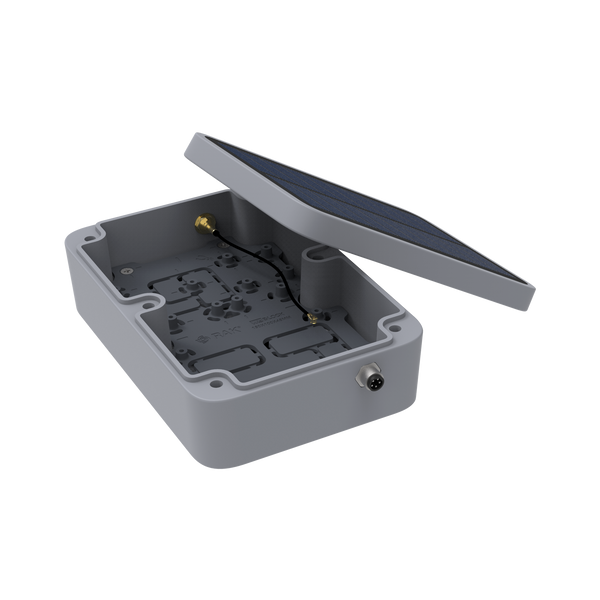

The variant with pre-mounted M8 5pin connector (IP rated) and RP-SMA (IP rated) antenna connector offers to use the enclosure with external antenna and the option to supply the WisBlock solution with 5V through the M8 connector or connect a solar panel to recharge a battery inside the enclosure (optional, battery and solar panel are not included).

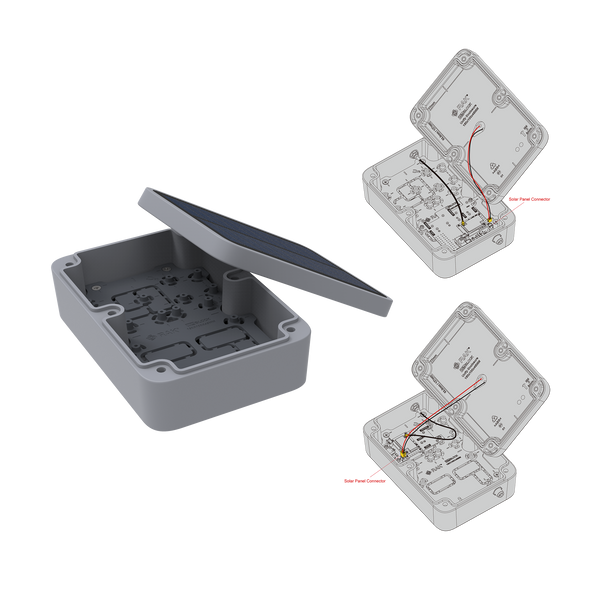

The M8 connector is a 5 pin variant with 2 pins for 5V or solar panel power supply and 3 pins for input or output signals. The cable inside the enclosure comes pre-mounted with a matching connector to the solar panel connector of the WisBlock Base Boards. The remaining 3 pins are with solder-ready end points.

If access to the USB ports of the WisBlock Base Boards is required, we offer drill guide jigs that can be 3D printed. These jigs are to place the holes at the correct position for RAK19007, RAK19001 or RAK19011 Base Boards.

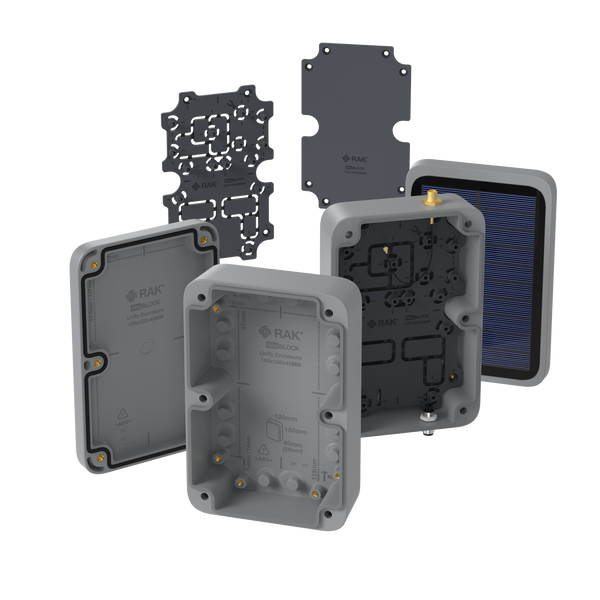

Unify Enclosure Range

• Unify Enclosure IP67 150x100x45mm with Pre-Mounted M8 5-pin Connectors and RP-SMA Antenna (This enclosure)
• Unify Enclosure IP67 100x75x38mm
• Unify Enclosure Solar IP65 100x75x38mm (with solar)
• Unify Enclosure IP67 150x100x45mm
• Unify Enclosure IP67 180x130x60mm

Accessories Supported:

• Unify WisBlock Mounting Plate 150x100x45mm - Allows you to create your own custom internal mounting solution easily with WisBlock hardware
• Unify Mounting Plate Blank 150x100x45mm - Allows you to create your own custom internal mounting solution for any hardware
• Unify Pole Mounting Vertical Kit (Type A)
• Unify Pole Mounting Horizontal Kit (Type C)
• Unify Wall Mounting Kit (Type D)
• Unify Belt Clip Kit (Type E)
• Unify DIN Rail Mounting Kit (Type F)
• Unify Magnet Mounting Kit (Type G)
• Unify Belt Loop Kit (Type H)
• Unify Label Kit (Type I)
• Unify Hook Loop Kit (Type J)

Accessories NOT Supported (only compatible with larger Unify Enclosures)

• Unify Pole Mounting Horizontal Kit (Type B)
  • Compatible enclosure for this accessory - 180x130x60mm

Enclosure Specifications

• Material: ABS UL94V-0 (flame-retardant)
• External Dimensions: 150x100x50mm (including lid)
• Internal Space: Approximately 138x88x35mm at the widest point (Usable space may vary due to internal features; narrowest internal width: 60mm)
• Wall Thickness: 4.5mm
• Seal: Silicone waterproof seal with a square profile to prevent twisting during installation
• Threaded Inserts: Brass, blind type throughout

Mounting Plate Specifications

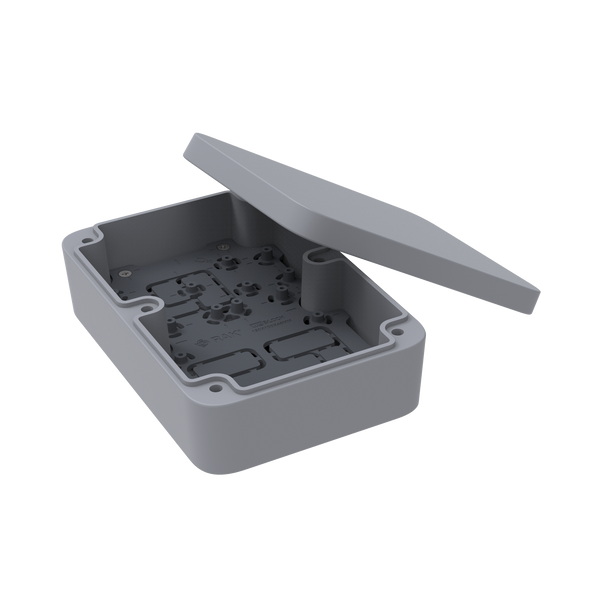

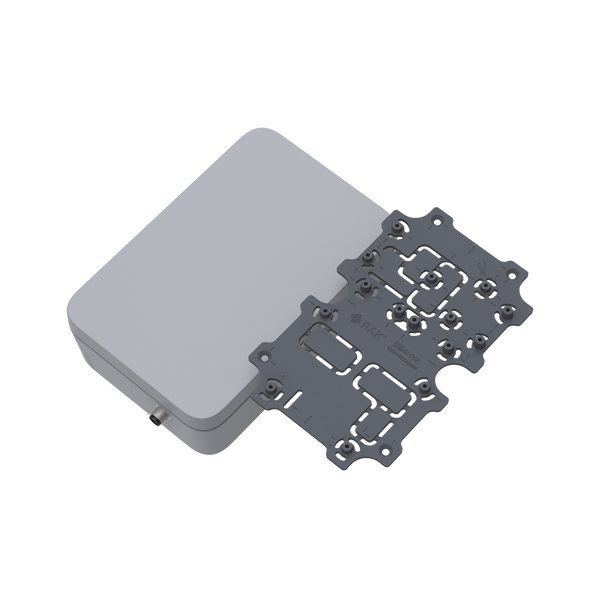

1. Unify WisBlock Mounting Plate with Screw Bosses for 150x100x45mm Enclosure

This bespoke mounting plate fits perfectly into the Unify Enclosure (150x100x45mm) and includes integrated screw bosses to support the following components:

• RAK19001: Primary support
• RAK19003, RAK19007: Can be mounted simultaneously with 1 x RAK19001

The mounting plate can be easily adapted to accommodate the Base Boards and any attached sensors by removing unneeded sections using simple hand-operated side-cutters.

Specifications:

• Compatibility: Unify Enclosure IP67 (150x100x45mm)
• Material Thickness: 2mm
• Mounting Hardware:
  • Includes M3 countersink screws for enclosure attachment
  • Includes self-tapping screws for securing the WisBlock Base Board to the mounting plate

2. Unify Mounting Plate Blank for 150x100x45mm Enclosure

This blank mounting plate is designed to fit seamlessly into the Unify Enclosure (150x100x45mm), allowing you to create a custom mounting solution tailored to your specific needs.

Specifications:

• Compatibility: Unify Enclosure IP67 (150x100x45mm)
• Material Thickness: 2mm
• Mounting Hardware: Includes M3 countersink screws for enclosure attachment

Package Inclusion

• 1 pc Unify Enclosure 150x100x45mm (with Solar/without Solar)
• 1 pc Mounting Plate (as per option selected)
• 1 Screw set
• 1 pc M8 Cable (if you choose with solar enclosure）
• 1 pc Ipex to RP-SMA Cable (if you choose with solar enclosure）
